Is your ID fan moving kiln gas, or leaked air?

The ID fan is at its limit and the kiln cannot take more feed. The easy answer is a bigger fan. Very often the fan is already big enough: it is pulling air that leaked into the tower through doors, flaps and expansion joints, cooling the gas and taking the place of kiln gas.

What it savesTurns the air leaking into the tower back into capacity for feed.

US$30One-time · yours to keep
See the sample report (PDF)
  • Excel 2013 or later, Windows and Mac
  • No macros, no internet
  • Updates for life
  • Updates for life
  • Your name on every sheet

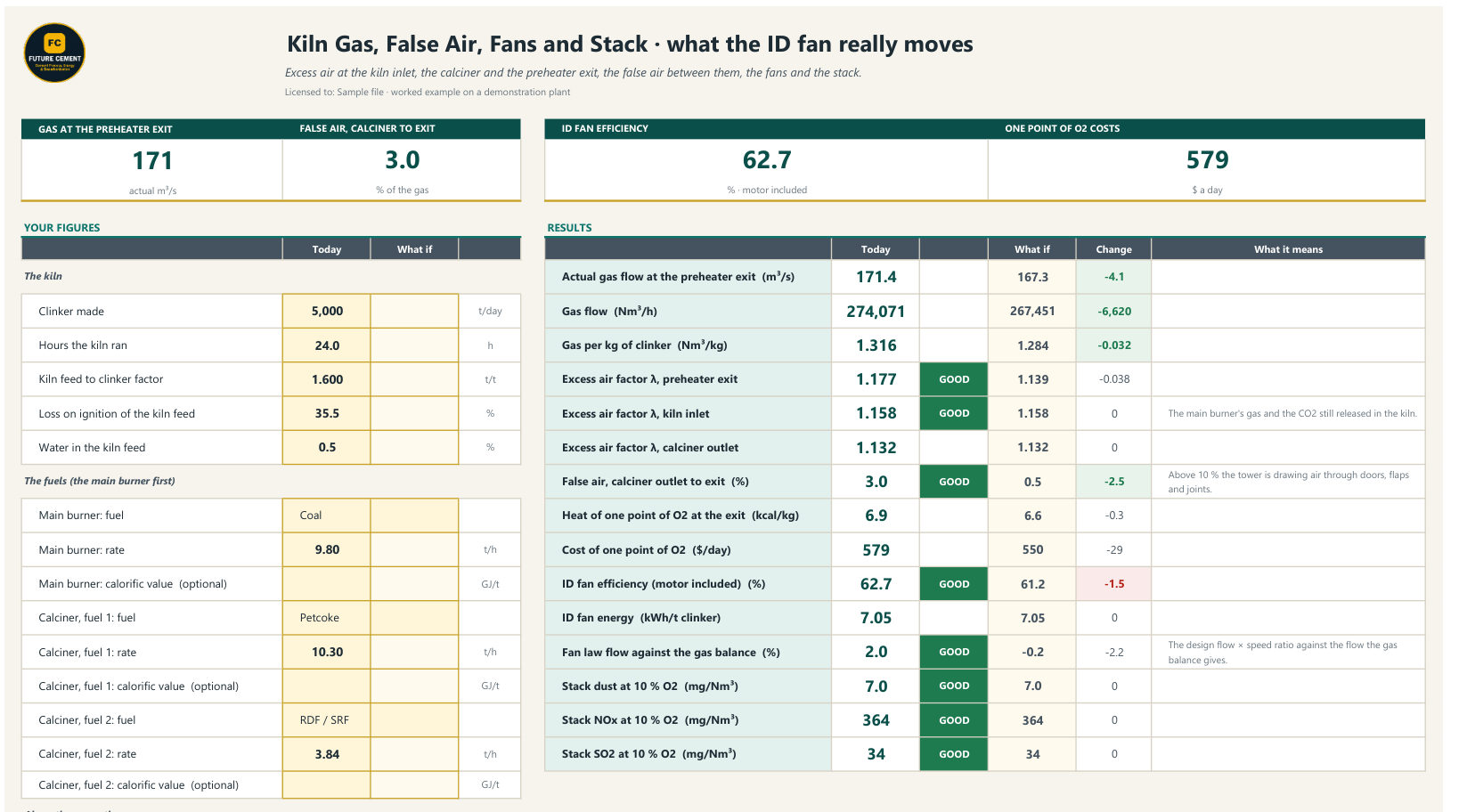

Your figures in: every result graded GOOD, WATCH or ACT, Today against What if

How this file helps

Find out if it is happening to you, how much it costs, and what to correct.

1Find outThe excess air at the kiln inlet, the calciner and the preheater exit, and the false air between them.
2MeasureWhat the fan really moves, its efficiency, and what one point of O2 costs a day.
3CorrectWhere to walk the tower, and the stack figures the authority will read.

What it gives you

The gas path, point by point.

Excess air at the kiln inlet, the calciner outlet and the preheater exit
The false air between them, and what one point of O2 costs a day
The ID fan efficiency and its fan law against the gas balance
The stack at 10 % O2 against the EU BAT levels

See it working

Worked on a demonstration plant.

Your figures in: every result graded GOOD, WATCH or ACT, Today against What if
Your figures in: every result graded GOOD, WATCH or ACT, Today against What if
The chart drawn for you, ready for the report
The chart drawn for you, ready for the report

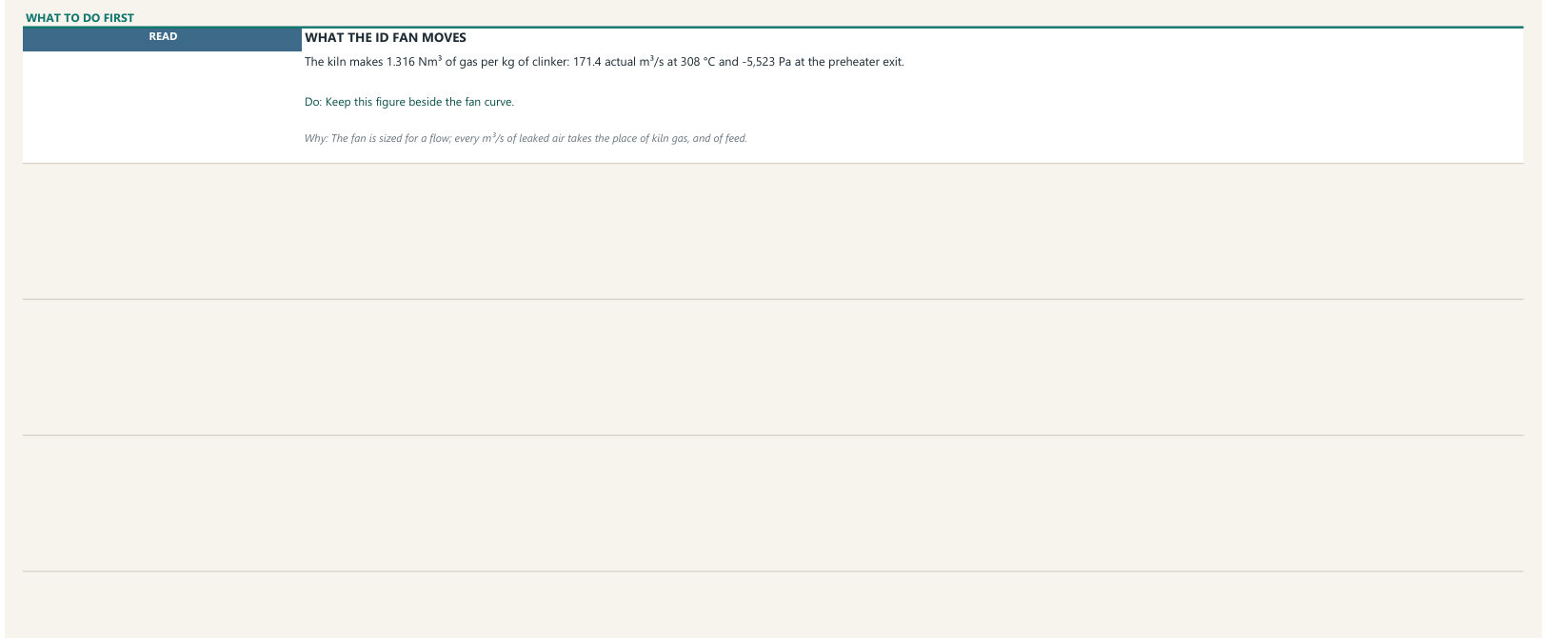

What to do first, and why
