Specialized Tools · Cement Mill · No. 01

Is your separator sending finished cement back to the mill?

The mill runs hard, the power climbs, and the tons will not come. From the control room it looks like a mill that has lost its strength. Very often the mill is fine: a worn rotor seal, coated guide vanes or feed dumping on one side make the separator return finished cement, and the mill grinds the same tons twice.

What it savesStops the mill grinding cement that was already fine.

US$30One-time · yours to keep
See the sample report (PDF)
  • Excel 2013 or later, Windows and Mac
  • No macros, no internet
  • Updates for life
  • Updates for life
  • Your name on every sheet
Your sampling in, every result out, graded and explained

How this file helps

Find out if it is happening to you, how much it costs, and what to correct.

1Find outFines recovery, bypass, cut size and sharpness from one sampling, each graded against a separator in good condition.
2MeasureThe tons coming back and what the mill really handles, so the loss has a size.
3CorrectWhat to check first, and why: rotor seal, guide vanes, air, feed spread. The Before vs After sheet proves the repair paid off.

What it gives you

From one sampling to a clear decision.

Know in minutes if the separator is the reason the mill is slow or uses too much power
Know what to fix first: guide vanes, rotor seal, air or feed spread, with the reason
Prove that a repair paid off: Before and After on one page
One clean page for the management, ready to print

See it working

A worked sampling from a demonstration plant.

Your sampling in, every result out, graded and explained
Your sampling in, every result out, graded and explained

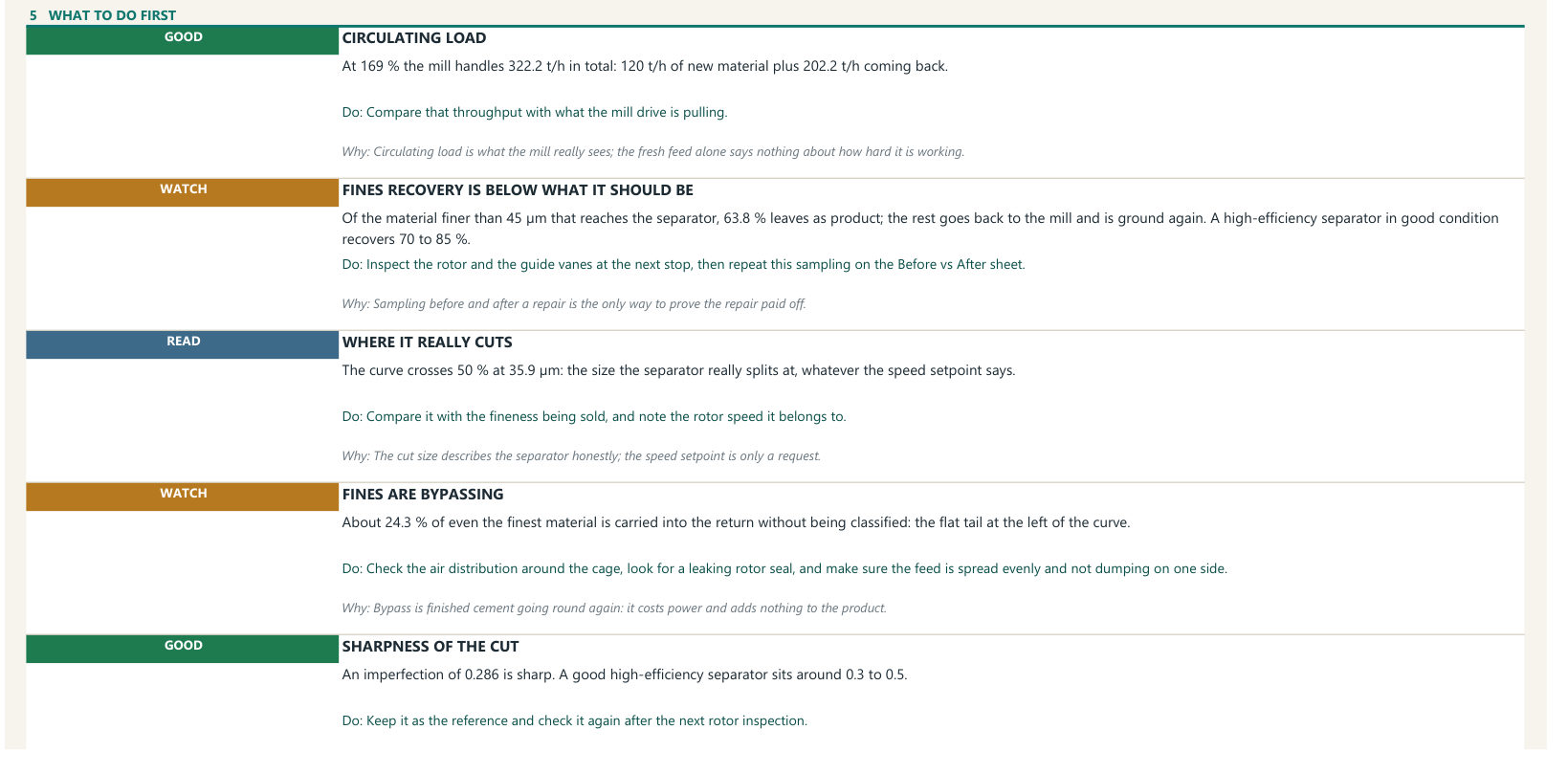

What to do first, what to check, and why
What to do first, what to check, and why
Before and After: did the repair pay off?
Before and After: did the repair pay off?

Worked out for you

11 results from the figures you already measure.

Fines recovery (efficiency)Coarse returned to the millCut size d50BypassSharpness (imperfection)Circulating loadCirculation factorMaterial returned, t/hTotal through the mill, t/hTromp curve drawn size by sizeFive checks: what to do first, and why

What is inside the file

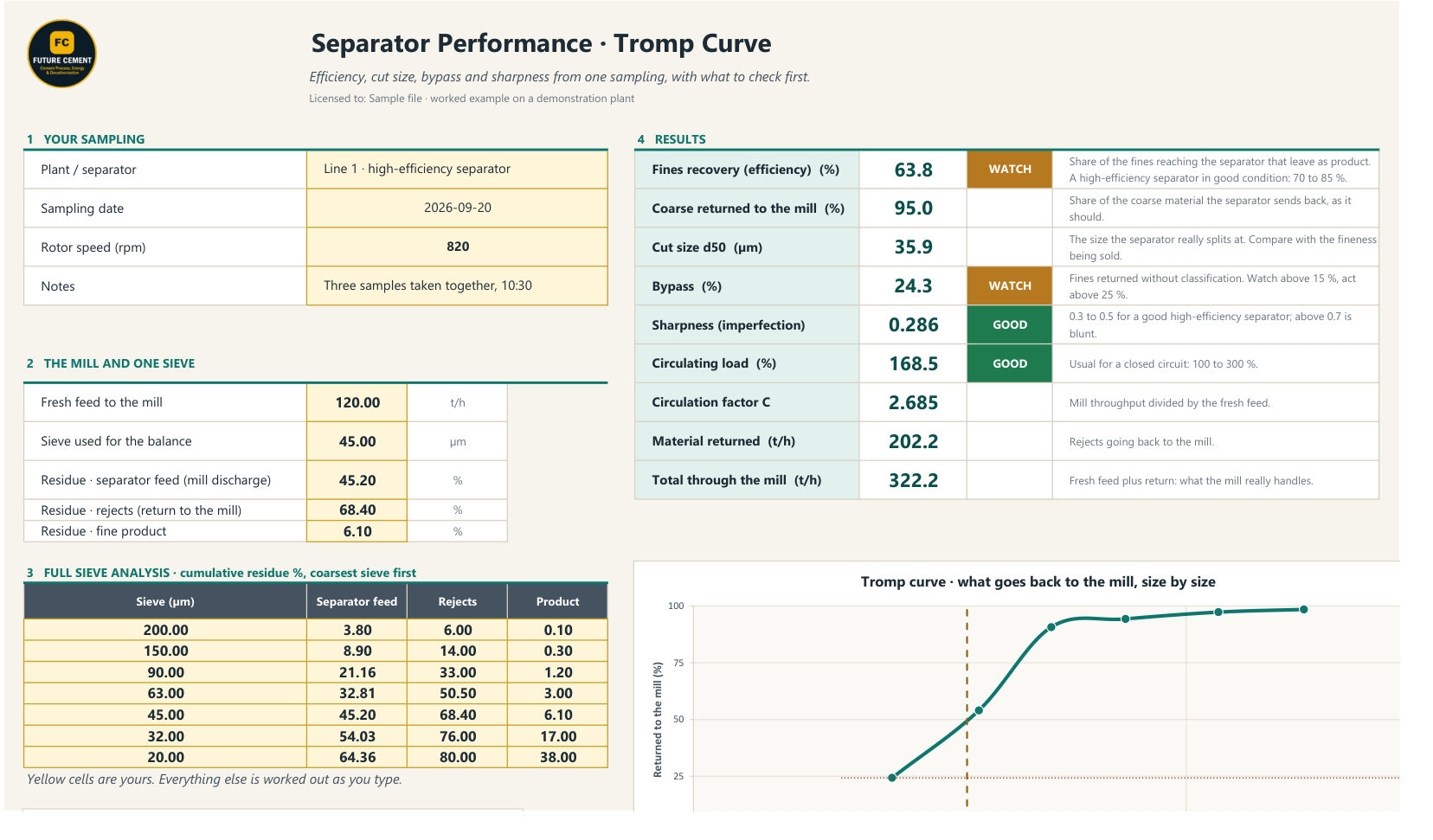

Tromp CurveYour sampling in, every result out, graded GOOD, WATCH or ACT, with the curve and the list of what to do first.

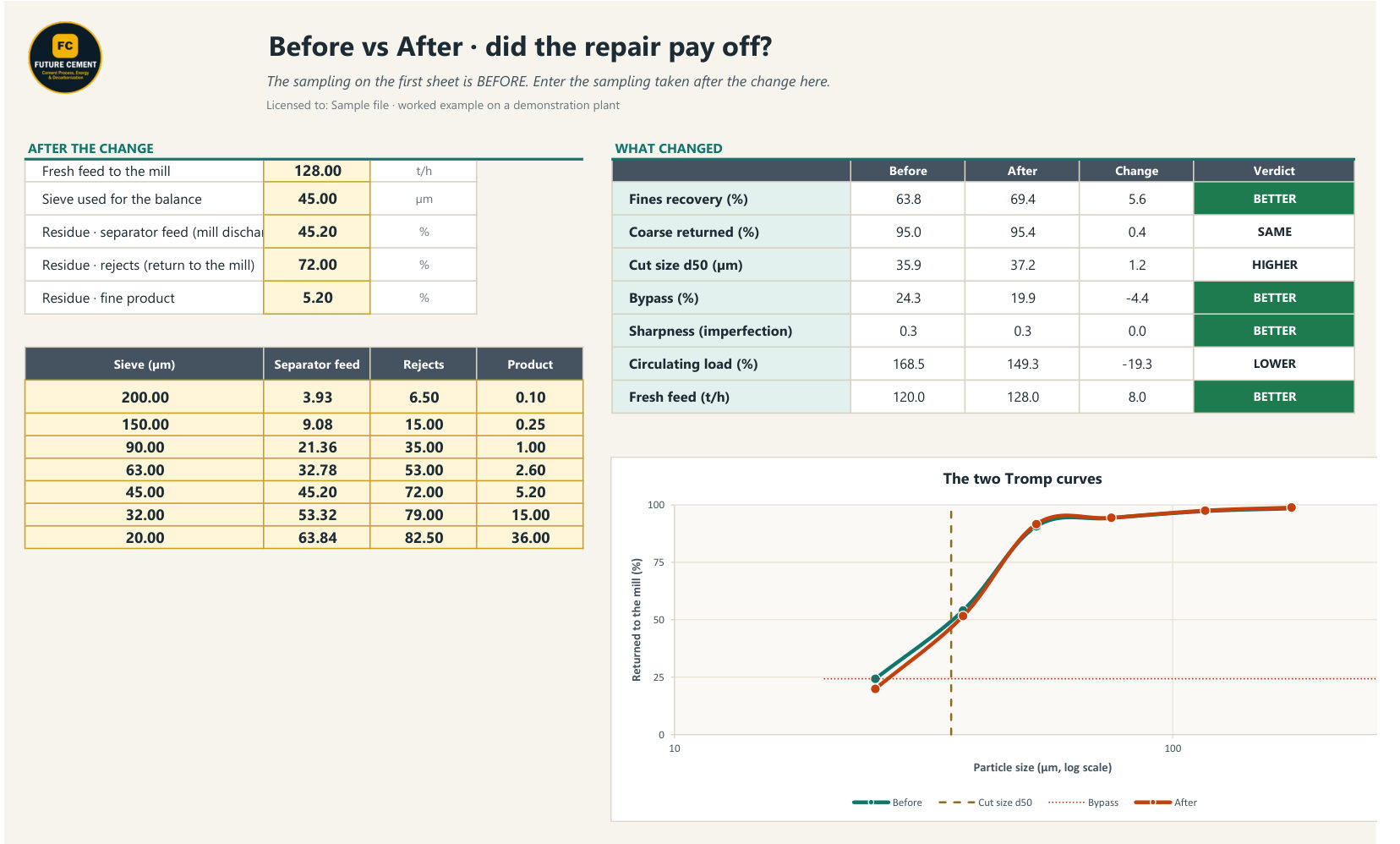

Before vs AfterThe sampling after a repair or a new setting, against the first one: each figure, the change and the verdict.
Method & SamplingHow to take the three samples so the balance closes, and how each result is obtained.
LicenseYour name, your company and your email, shown in the heading of every sheet.

What you need

  • 1Fresh feed to the mill (t/h)
  • 2Three samples taken together: separator feed, rejects, fine product
  • 3Residue of each sample on one sieve (45 µm is usual)
  • 4A sieve analysis of the three samples, 6 or 7 sieves from about 200 µm to 20 µm
Industry methodsMass balance of the three streams, the curve size class by size class, and the cut read on the curve, as used across the cement industry.
Graded, not just calculatedEach result is marked GOOD, WATCH or ACT against the usual range, with the reason.
Ready for the reportPrint-ready pages with the charts drawn for you.
Yours to keepOne price, no subscription. Use it again and again.

Questions

Before you buy

Can I see it before I buy?

Yes. The sample report shows the whole first sheet of the file, worked on a demonstration plant: every result, the charts and what to do first.

Does it need the internet or macros?

No. It works on Excel 2013 or later, on Windows or Mac, with no macros and no connection. Nothing to install.

Can I use it for several separators?

Yes. Save one copy per separator and per test. The file is yours to use for as long as you like.

Who may use my copy?

One engineer or one plant. Your name is written on every sheet.

How do I pay?

Press Buy. We reply on WhatsApp and by email with the bank details. When the payment arrives, your copy is ready to download from this page.
