Specialized Tools · Cement Mill · No. 11
How wide is the particle size spread of your cement?
Two cements pass with the same 45 µm residue, yet one needs more water and loses early strength at the customer. The difference is the shape of the particle size spread, set mostly at the separator, and one fineness number hides it.
What it savesExplains why two cements with the same residue behave differently in concrete.
- Excel 2013 or later, Windows and Mac
- No macros, no internet
- Updates for life
- Updates for life
- Your name on every sheet
How this file helps
Find out if it is happening to you, how much it costs, and what to correct.
What it gives you
The shape of the cement in two numbers.

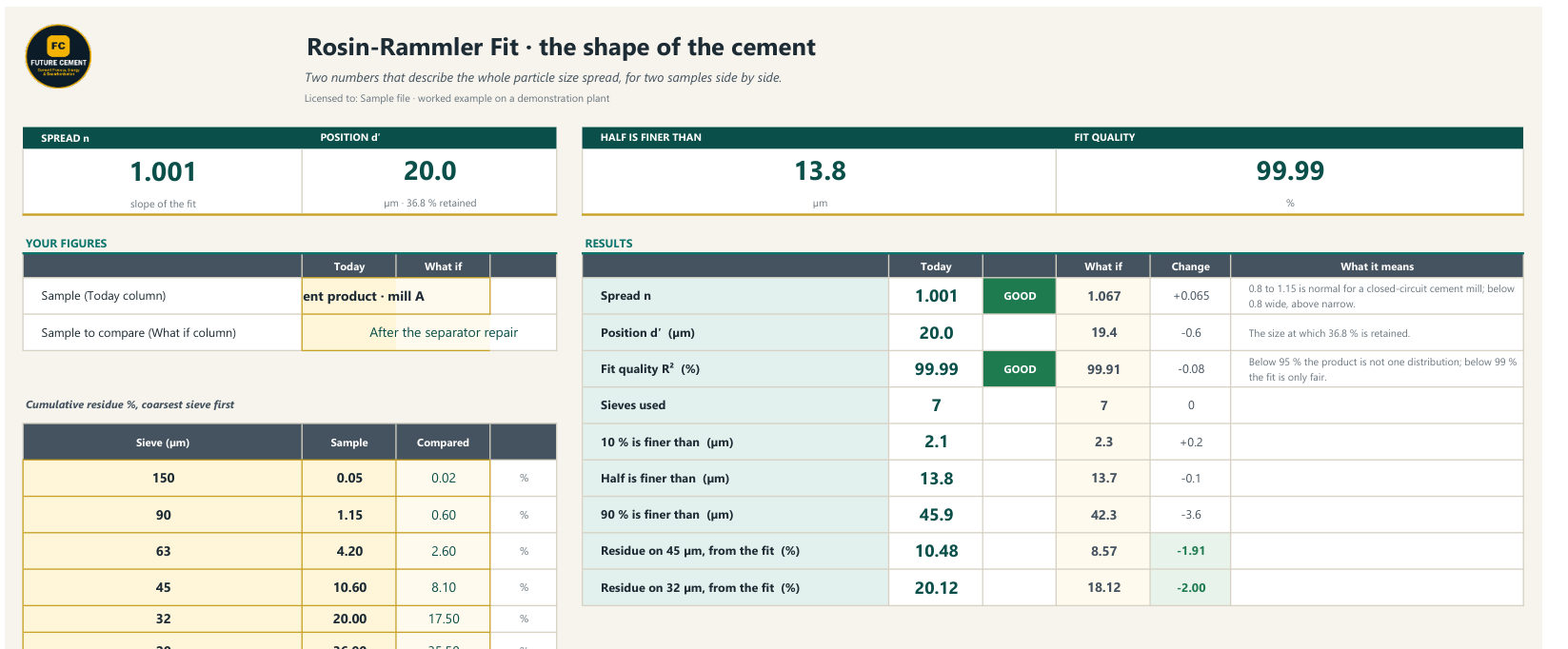

See it working
Worked on a demonstration plant.
Worked out for you
5 results from the figures you already measure.
What is inside the file
What you need
- 1A sieve analysis of the cement, 3 to 7 sieves, cumulative residue
- 2Optional: a second sample to compare
Questions
Before you buy
Can I see it before I buy?

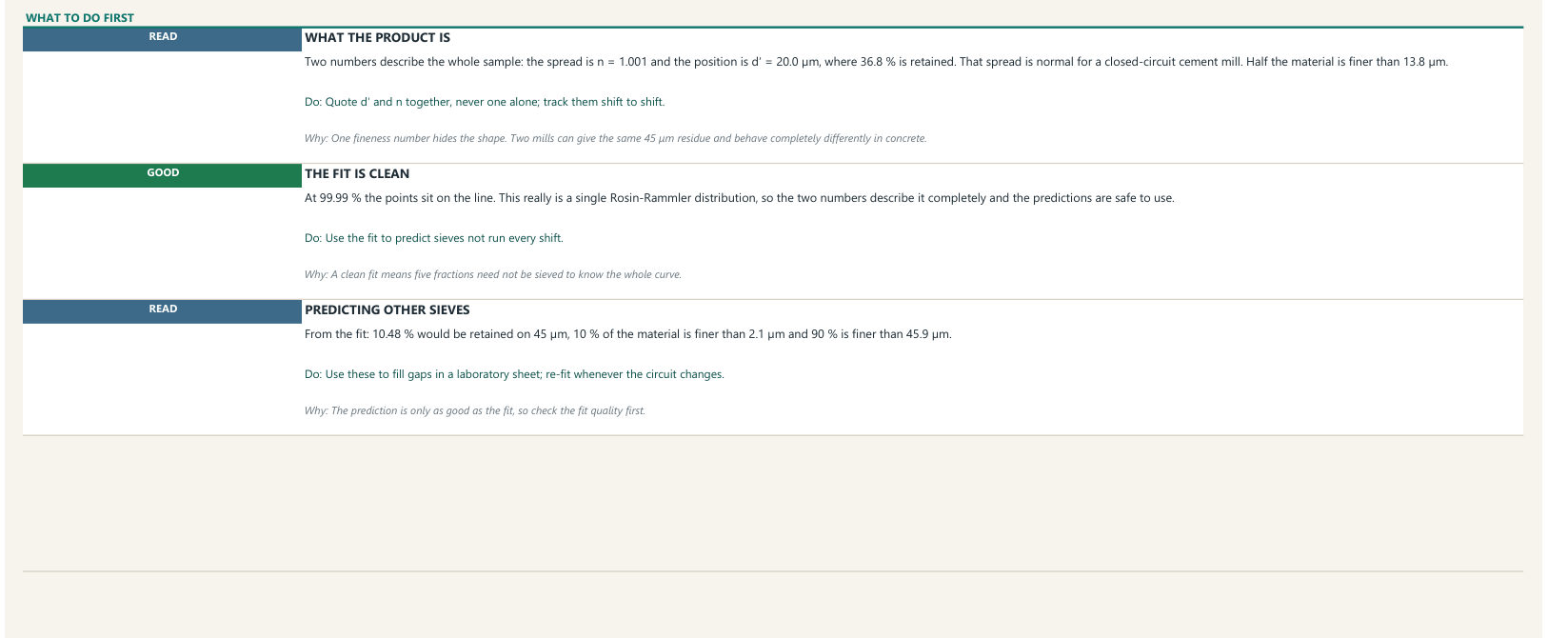

Yes. The sample report shows the whole first sheet of the file, worked on a demonstration plant: every result, the charts and what to do first.
Does it need the internet or macros?
No. It works on Excel 2013 or later, on Windows or Mac, with no macros and no connection. Nothing to install.
Can I use it for several products?
Yes. Save one copy per product and per test. The file is yours to use for as long as you like.
What is the What-if column?
Type a new figure beside today's and see every result change, before anything is changed in the plant.
Who may use my copy?
One engineer or one plant. Your name is written on every sheet.
How do I pay?
Press Buy. We reply on WhatsApp and by email with the bank details. When the payment arrives, your copy is ready to download from this page.
How wide is the particle size spread of your cement?
Have the answer with your next figures.
